Create a loopback serial port

Electronic Team Electronic Team

Available only in the PRO edition.

To create a loopback serial port, do the following:

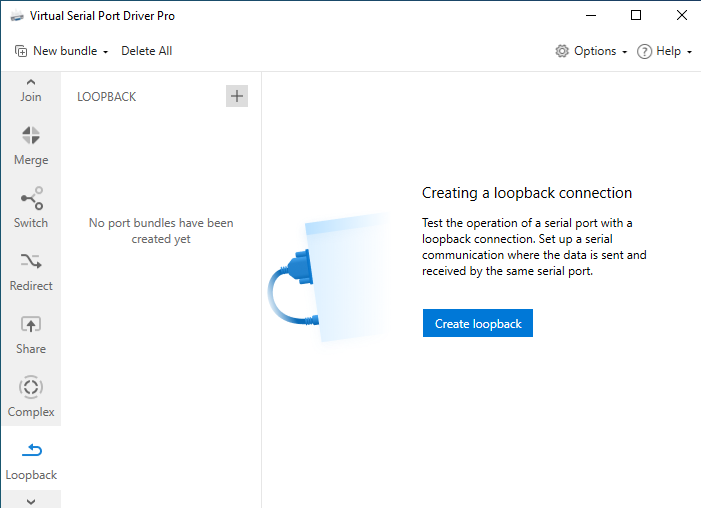

  1. Сreate a new port bundle. To do that, click the “Loopback” icon on the vertical menu at the left, then click the “Create loopback” button: new port bundle

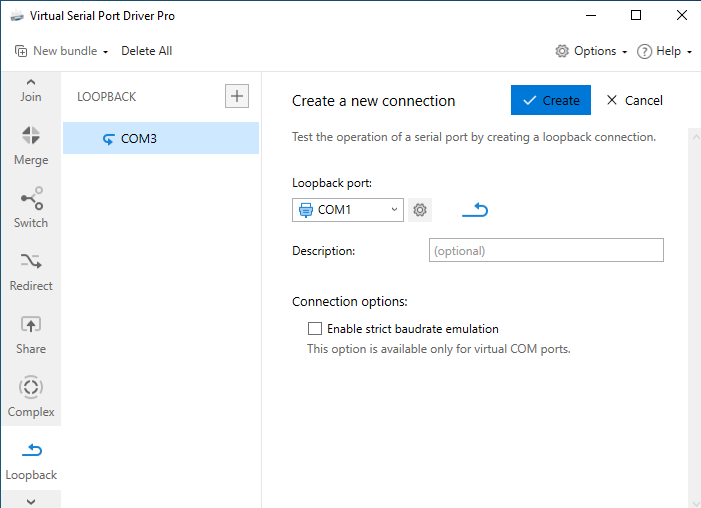

  2. Choose the port you want to set a loopback connection for from a dropdown list.

    You can use the main port button for a quick access to the port’s settings.

    Also, you can enter a custom name for this bundle into the “Description” field for easier identification, and/or enable strict baudrate emulation by ticking the respective checkbox: identification

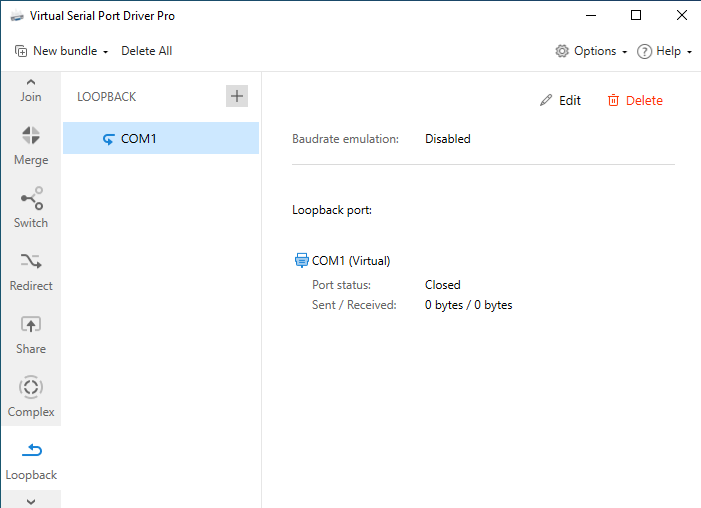

  3. Click the “Create” button. Now you can click this port bundle in the Bundle tree to view its settings: Bundle tree
