Virtual COM Port Driver
Create virtual serial ports and connect them via virtual null-modem cable

Virtual Serial Port Driver by Electronic Team allows creating a large number of virtual COM ports and gives you the great possibility to fully emulate serial port behavior. Virtual Serial Port software is not just a simple COM port emulator. It provides flexible port creation, management, and removal, allows testing serial software, supports control lines and high speed of data transfer between virtual COM ports. Various applications can exchange data using virtual serial ports connected with a virtual null-modem cable. Serial data sent from one port to another will be received momentarily.

Download

Purchase Now

Virtual Serial Port Driver main features

Virtual COM Port Driver is a powerful technology designed specifically for those who develop, test, or debug serial port software and hardware. This solution will provide your system with as many virtual COM interfaces as you need.

Easy way to add more COM ports in the system

Virtual Serial Port Driver is a software solution that doesn't require any additional hardware and cables. No need to occupy real COM ports. Virtual ports fully emulate real ones, so that applications don't see any difference.

Unlimited number of COM ports

With Virtual Serial Port Driver, you can create as many pairs of virtual ports as you need. Any data sent to one port in the pair is momentarily received by the other port.

Full serial emulation

Virtual COM ports operate the same as real ones and any application can work with them as if they were real physical ports on your computer. Each pair of virtual serial ports supports all hardware signal lines and allows setting any type of signal line connection. If the emulated device works at a fixed speed, there is no problem to emulate the needed baud rate with Virtual Serial Port Driver.

Corporate offers & SDK

Whether you're looking at redistributing our Virtual Serial Port Driver solution as a part of your product or considering Virtual Serial Port Driver for an enterprise-wide deployment, we offer flexible and affordable corporate solutions designed to meet your needs.

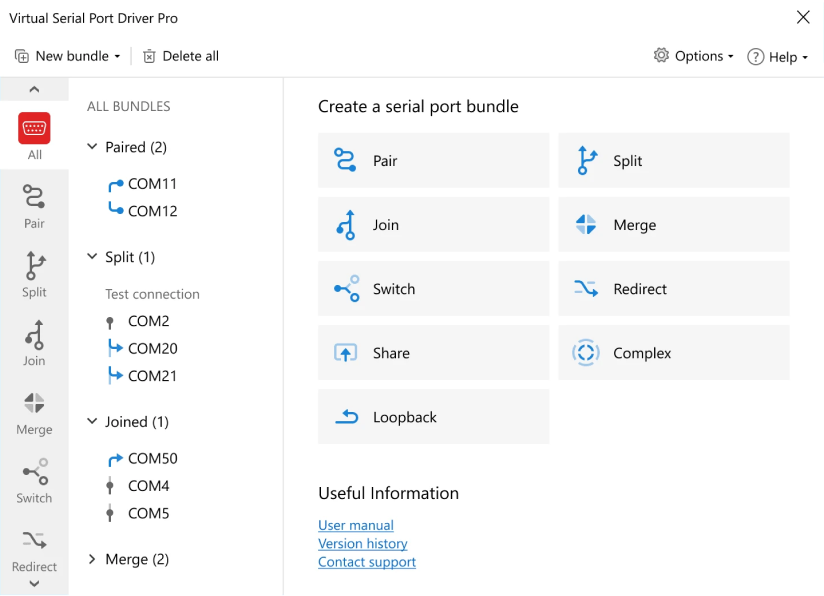

Virtual Serial Port Driver PRO features

Virtual Serial Port Driver PRO is an efficient and complete software that works based on the functionality of Virtual Serial Port Driver. The program makes it possible to create bundles of virtual serial ports and put in place custom parameters, making it a solution that can be used in various scenarios. Virtual Serial Port Driver PRO allows you to manage real and virtual COM ports easily and conveniently.

Splitting and joining COM ports

With Virtual Serial Port Driver PRO, you can split physical serial ports (such as COM 1) into multiple communication ports (COM2, COM3, COM4, and so on) which are shown in the system as same copies of a hardware serial interface. Also, the software solution allows hardware serial ports to be shared among several applications. The software solution will make it possible to link multiple real physical COM ports to a single virtual port. When a serial application is connected to this virtual port, it will receive data from all connected COM ports at the same time.

Creating bundle connections

This unique functionality that the software PRO version offers enables you to set up and manage complex serial ports bundles. This implies that you can transmit serial data in and out by a limitless number of physical and virtual COM interfaces. Serial data will be received by a COM port the ‘IN’ side and then redirected to all COM ports at the ‘OUT’ side of a bundle and vice versa.

More so, creating Main port for each side of a bundle (In/Out), enhances the process of hardware control lines management.

Switching ports automatically

In case the number of ports your application can only work with is limited, a switcher, which is a unique feature of Virtual Serial Port Driver PRO, can be used. This option makes is possible for you to connect multiple physical ports to a single virtual port (you also have the option of assigning the same name to all the ports), and set up a switcher to this virtual rs232 port in via the appropriate app.

Whenever your program needs to connect to a serial port, the switcher will go ahead to identify a non-occupied COM port in the list of connected ports and make it available to the app. This implies that your program will automatically interact with any free serial port as though they were connected to the same port.

Merging COM ports

Virtual Serial Port Driver PRO’s new advanced feature allows you to add an unlimited number virtual COM port to single serial port bundle not divided into ‘IN’ and ‘OUT’ sides. Whatever is set to one port will be replicated to other real and virtual ports of the bundle. Thanks to this breakthrough feature, every application or device can now exchange data with multiple applications/device at the same time.

Advanced COM port testing

Another extra useful Virtual Serial Port Driver feature is Loopback. With its help, you can create fully-functioning virtual COM-port bundles with a circuitous data bearing. Technically, the ‘IN’ side of this type of bundle is linked directly to its ‘OUT’ side. So, whatever data you’ll send, the very same one you’re going to get. Or not. That will depend on your port’s correct operation.

Compare STANDARD and PRO versions

#	Feature	Standard	Pro
1	Completely emulate hardware control lines and physical COM port parameters
2	No limit on the number of virtual serial ports that can be created
3	Create complex bundles of virtual COM ports
4	Multiple virtual RS232 ports can be created by splitting a physical or virtual serial port
5	Unlimited physical or virtual serial ports can be merged into a single COM port
6	Virtual COM ports provide high data transmission speed
7	Ports in use by other applications can be deleted
8	The serial port emulation software is digitally signed as are all of its internal drivers.
9	Serial data traffic can be forwarded from a real port to another virtual or physical interface
10	Windows kernel driver technology (WDM, WMI, Power Management, PnP, etc.) is fully supported
11	Serial port emulation is supported for VMware and hyper-threading
12	Fully supports strict baudrate emulation
13	Аssign any name you like to virtual serial ports, even names that are used by physical ports
14	Various virtual null-modem schemes are available for use: standard, loopback, and custom
15	Merge multiple COM interfaces into a single bundle
16	Capacity to customize the connection parameters of physical serial ports (parity, baudrate, databits, stopbits, and flow control)
17	Virtual ports are automatically re-created prior to user logon after a system reboot.
18	Each port can have individually set read and write permissions
19	HandFlow control (Hardware and Xon/Xoff) is fully supported
20	Multiple applications can share a single physical serial port simultaneously
21	Application port usage data can be saved in the ‘Activity log’
22	Virtual serial ports created by VSPD and displayed in Device Manager can have their names changed
23	Install the software and create and configure virtual serial ports without the need to reboot your machine
24	Create fully functional loopback connections

Show 14 more options

The frequently asked questions

What is a virtual COM port?

A virtual COM port is a software package emulating a hardware serial port in such a way that your operating system and all applications recognize it and interact with it as though it were a real COM interface.

What is a virtual serial port used for?

A virtual COM port is often used for connecting some specialized COM-enabled equipment (commercial, laboratory, control system devices, etc.) to modern desktop computers and laptops that don’t have a physical serial port. To emulate COM ports, you need specific software.

What is Virtual Serial Port Emulator?

The software emulates serial port functionality connected by virtual null modem cable in such a way that the system does not see the difference between virtual and real hardware ports.

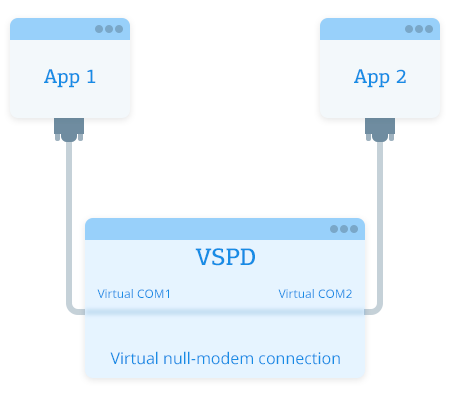

The ports are connected in pairs via virtual null modem cable: the data written to the application at one end instantaneously read by the application at the other end and vice versa. An application working with the emulated serial port will never notice the difference.

How do I create a virtual COM port?

In order to create a virtual serial port, do the following:

Download the dedicated software and install it on your PC.
Start the app and head to the "Pair" tab.
Click "Add a new pair" and select the ports from the drop-down menu.
Click "Create".

Now you can see the two newly-created virtual serial ports in the Serial Ports Explorer and Device Manager of your computer.

Note: The software lets you create as many virtual COM port pairs as you want.
